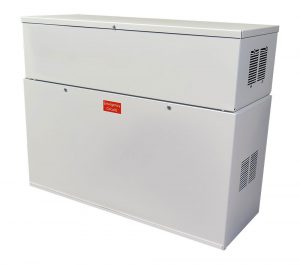

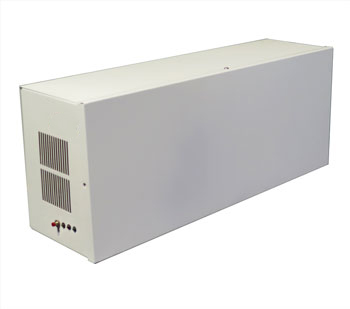

IMS Series
Pure Sine Wave, Single Phase 150-600 Watts, 120 or 277VAC

The IMS Series Pure Sine Wave Emergency Lighting Inverter from IEP Systems is designed to provide power to emergency and other critical loads in the event of a power failure or brownout situation.
The line voltage output allows the remote fixtures to be located up to 2000 feet from the unit. Each system is designed with fly-leads for contractor connection to ensure an easy installation.
IMS Series series inverter employs sealed, maintenance- free* VRLA batteries with a design life of 10 years per battery manufacturer guidelines.

Capacity: 150-600 watts/va
Input: 120V or 277V
Output: 120V or 277V
Efficiency: Over 98% on normal
Charging: Per UL 924 utilizing multi-stage charger to prolong battery life
Labels: Listed to UL924. Compliant with NFPA 101 and NEC.
Construction: Cold-rolled steel finished with electrostatic powder coat paint to prevent corrosion.
Warranty:

  • 1 year standard on electronic
  • 9 years prorated on battery
  • Optional extended warranty available
Runtime:   90 minutes minimum on standard configuration. Consult factory for other runtime.
Battery type:  VRLA
Battery protection: LVD – low voltage discharge to prevent excessive discharge.
Temperature rating: 0 – 40 °C (32 – 104 °F)
