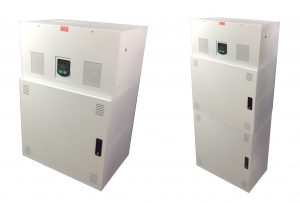

GNS Series Single Phase
525-4800 Watts, 120, 208, 277 VAC

Small footprint and versatile, GNS series is designed to work with power demand of modern LED fixtures.

Capacity:  800-4500 watts/va
 Input:  120V, 208 or 277V
 Output:  120V, 208 or 277V
Charging: Per UL 924 utilizing multi-stage charger to prolong battery life
Labels: Listed to UL924. Compliant with NFPA 101 and NEC
Construction: Cold-rolled steel finished with electrostatic powder coat paint to prevent corrosion.
 Warranty:
  • 1 year standard on electronic and housing
  • 10 years prorated on battery
  • Optional extended warranty available
 Runtime: 90 minutes minimum on standard configuration. Consult factory for other runtime.
 Battery type:  VRLA
 Battery protection:  LVD – low voltage discharge to prevent excessive discharge.
Circuit protection: Input breakers on AC and DC provided
Cooling: Active ventilation and temperature sensing to control integral fans
Temperature rating: 0 – 40 °C (32 – 104 °F)

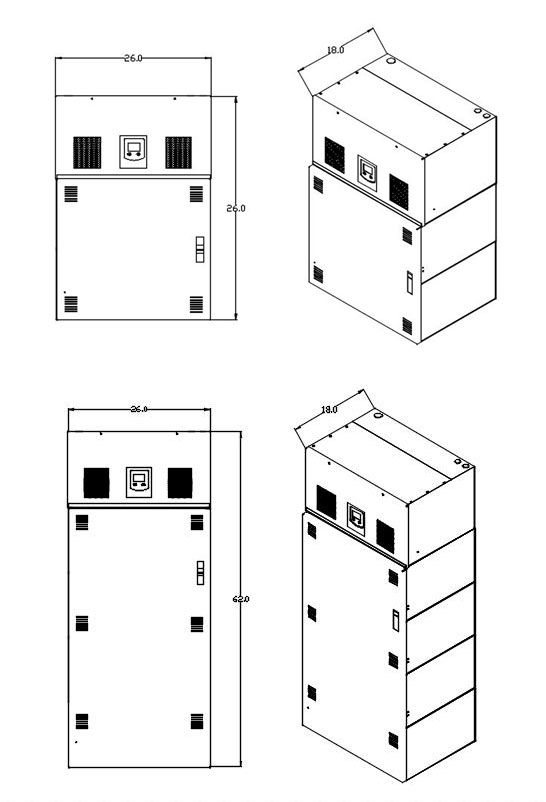

Cabinet Profile A

2kW and under

37 3/4″H x 26”W X 18 ”D

Cabinet Profile B

Over 2kW

62”H x 26”W X 18 ”D

Click to view larger image

DOWNLOADS
