GLX Series Pure Sine Wave
Single Phase, 1kW-16kW, Pure Sine Wave Inverter

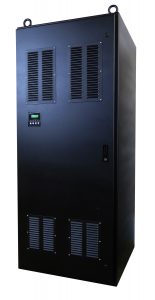

Housed in a freestanding cabinet, GLX series inverter is designed to work rugged for even the most demanding application.

Capacity: 1-18 KW/KVA
Input: 120V, 208 or 277V, single phase
Output: 120V, 208 or 277V
Charging: Per UL 924 utilizing multi-stage charger to prolong battery life
Labels: Listed to UL924. Compliant with NFPA 101 and NEC
Construction: Cold-rolled steel finished with electrostatic powder coat paint to prevent corrosion.
  • 1 year standard on electronic and housing
  • 10 years prorated on battery
  • Optional extended warranty available
Runtime: 90 minutes minimum on standard configuration. Consult factory for other runtime.
Battery type: VRLA
Battery protection:  LVD – low voltage discharge to prevent excessive discharge.
Circuit protection: Input breakers on AC and DC provided
Cooling: active ventilation and temperature sensing to control integral fans
Temperature rating: 0 – 40 °C (32 – 104 °F)
